Pneumatic Ball Transfers
Pneumatic Ball Transfers allow air-driven positioning of the conveyed item & may be individually arranged for a flexible, modular conveying plane.
PS25 Positioning Stops are pneumatically activated to stop & hold the position of the conveyed item.
In low pressure systems, tubing length should be extended or altered using optional in-line connectors (TC4) as the tubing & fittings are not designed to be separated once assembled.
Appropriate blanking plugs are automatically supplied with each order.
Alternative ball materials & sizes available.

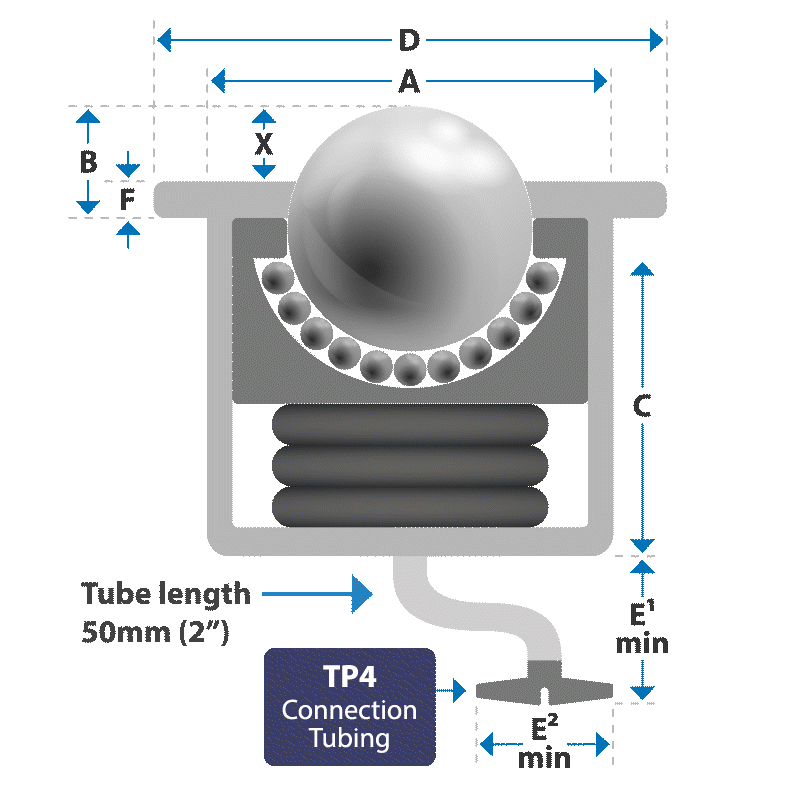

PB25
(4 bar)
PB525
PB625
(6 bar)
| Part | Lift (lb)Lift (kg) | Bar | A | B | C | D | E1 MIN | E2 MIN | F | $ from |  Files |  |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PB25 | 55 55 | 50 3.4 | 1.563 39.7 | 0.472 12 | 1.256 31.9 | 1.850 47 | 0.591 15 | 1.457 37 | 0.1 2.54 | $76.99 | ||
| PB525 | 77 77 | 87 6 | 1.575 40 | - - | 2.283 58 | 1.654 42 | 0.827 21 | 1.457 37 | - - | $102.51 | ||
| PB625 | 77 77 | 87 6 | 1.575 40 | 0.476 12.1 | 2.283 58 | 1.969 50 | 1.535 39 | 1.811 46 | 0.1 2.5 | $109.84 |
Accessories
-
Low pressure 3-Way Connector
TC4
From $7.80 -
Low pressure Blanking Plug
TB4
From $3.90 -
Low pressure Tubing (3m roll)
TP4
From $7.36 -
High & low pressure Regulator Valve
AV6
From $112.10 -
High & low pressure 2-Way Switch
AS6
From $79.25 - High pressure
3-Way Connector
TC6
From $7.80 - High pressure
Blanking Plug
TB6
From $3.90 - High pressure
Tubing (3m roll)
TP6
From $22.52 - High & low pressure
3-Way Switch
AS7
From $100.45 - High pressure
Tubing (3m roll)
TP8
From $22.52 -
Low pressure Fixing Clip
PF2
From $6.82
High pressure
Low pressure
Low pressure
Low pressure
Low pressure
High pressure Units & rails are all fitted with a T connector for ease of integration. High & low pressure tubing, connectors & end-plugs. Configure together with switches & regulators to provide versatile control.
Pneumatic Ball Transfers, Stops, Linear Rollers & Rails
- Pneumatic Ball units allow air-driven positioning of conveyed item & may be individually arranged for a flexible, modular conveying plane.
- PS25 positioning stops are pneumatically activated to stop & hold the position of the conveyed item.
- Units rated with a maximum air supply pressure of ≤3.4 bar support loads of up to 200 Kgs/rail, whilst those rated at ≤6 bar air supply support up to 2500 Kgs/rail.
