80 & 90 Series – Push Fit Ball Transfer Units

80 90 Series 90 Series90 Series 90 Series 90 Series

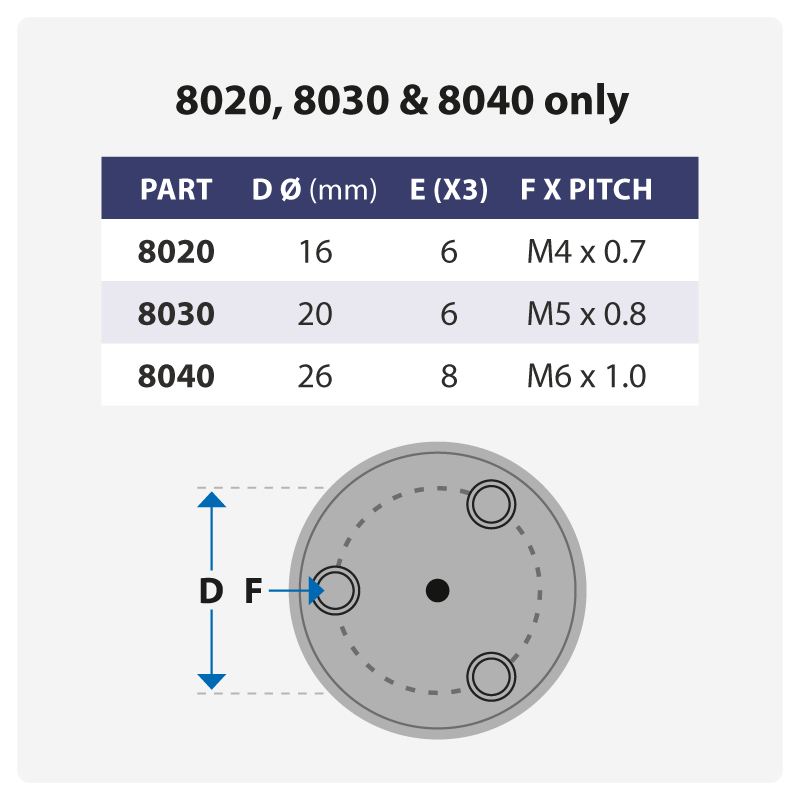

80 Serie Diagram 90 Series
90 Series 90 Series
Switch measurements:
Part Load (lb)Load (kg) BALL ⌀ ″BALL ⌀ mm A B C$ fromFile icon FilesAdd to Cart
8000 120 50 1/2" 12.7 0.787 20 0.787 20 0.156 3.8 $62.80PDF Step
8001 120 50 1/2" 12.7 0.812 20.6 0.750 19.1 0.156 3.8 $63.23PDF Step
8010 120 50 1/2" 12.7 0.875 22.2 0.87" 22.1 0.156 3.8 $70.38PDF Step
8020 200 90 5/8" 15.8 0.944 24 1.141 29 0.197 5 $267.97
8030 275 110 3/4" 19.1 1.181 30 1.338 34 0.236 6 $384.84
8040 400 120 1" 25.4 1.496 38 1.771 45 0.314 8 $448.66
9020 500 225 1" 25.4 1.732 44 1.625 41.3 0.219 5.6 $150.62PDF
9021 500 225 1" 25.4 1.75" 44.5 1.625 41.3 0.219 5.6 $150.62PDF
9022 500 225 1" 25.4 1.75" 44.5 1.625 41.3 0.281 7.1 $150.62PDF
9030 850 385 1" 25.4 1.968 50 1.75" 44.5 0.25 6.4 $179.74PDF
9031 850 385 1" 25.4 2" 50.8 1.75" 44.5 0.25 6.4 $179.74PDF
9040 2500 1100 1 1/2" 38.1 2.362 60 2.421 61.5 0.5 12.7 $287.89PDF
9041 2500 1100 1 1/2" 38.1 2.375 60.3 2.421 61.5 0.5 12.7 $287.89PDF
9042 2500 1100 1 1/2" 38.1 2.375 60.3 2.375 60.3 0.5 12.7 $287.89PDF
9050 5000 2200 2" 50.8 3.937 100 3.74" 95 0.562 14.3 $912.90PDF
9051 5000 2200 2" 50.8 4" 101.6 3.875 98.4 0.562 14.3 $912.90PDF
9060 10000 4550 3" 76.2 6.297 160 5.703 145 0.825 21 $2,964.29PDF
9070 18000 8000 4" 101.6 8.969 228 7.484 190 1.5 38 $9,245.76
8000A 120 50 1/2" 12.7 0.787 20 0.787 20 0.156 3.8 $80.04PDF Step
8001A 120 50 1/2" 12.7 0.812 20.6 0.750 19.1 0.156 3.8 $80.04PDF Step
8010A 120 50 1/2" 12.7 0.875 22.2 0.87" 22.1 0.156 3.8 $87.19PDF Step
8020A 200 90 5/8" 15.8 0.944 24 1.141 29 0.197 5 $306.71
8030A 275 110 3/4" 19.1 1.181 30 1.338 34 0.236 6 $426.69
8040A 400 120 1" 25.4 1.496 38 1.771 45 0.314 8 $490.10
9020A 500 225 1" 25.4 1.732 44 1.625 41.3 0.219 5.6 $187.92PDF
9021A 500 225 1" 25.4 1.75" 44.5 1.625 41.3 0.219 5.6 $187.92PDF
9022A 500 225 1" 25.4 1.75" 44.5 1.625 41.3 0.281 7.1 $187.92PDF
9030A 850 385 1" 25.4 1.968 50 1.75" 44.5 0.25 6.4 $221.96PDF
9031A 850 385 1" 25.4 2" 50.8 1.75" 44.5 0.25 6.4 $222.66PDF
9040A 2500 1100 1 1/2" 38.1 2.362 60 2.421 61.5 0.5 12.7 $431.75PDF
9041A 2500 1100 1 1/2" 38.1 2.375 60.3 2.421 61.5 0.5 12.7 $431.75PDF
9042A 2500 1100 1 1/2" 38.1 2.375 60.3 2.375 60.3 0.5 12.7 $431.75PDF
9050A 5000 2200 2" 50.8 3.937 100 3.74" 95 0.562 14.3 $1,133.30PDF
9051A 5000 2200 2" 50.8 4" 101.6 3.875 98.4 0.562 14.3 $1,133.30PDF
9060A 10000 4550 3" 76.2 6.297 160 5.703 145 0.825 21 $3,477.53PDF
9070A 18000 8000 4" 101.6 8.969 228 7.484 190 1.5 38 $11,606.18
8000Z 120 50 1/2" 12.7 0.787 20 0.787 20 0.156 3.8 $0.00
8001Z 120 50 1/2" 12.7 0.812 20.6 0.750 19.1 0.156 3.8 $0.00
8010Z 120 50 1/2" 12.7 0.875 22.2 0.87" 22.1 0.156 3.8 $0.00
8020Z 200 90 5/8" 15.8 0.944 24 1.141 29 0.197 5 $535.53
8030Z 275 110 3/4" 19.1 1.181 30 1.338 34 0.236 6 $764.77
8040Z 400 120 1" 25.4 1.496 38 1.771 45 0.314 8 $897.32
9020Z 500 225 1" 25.4 1.732 44 1.625 41.3 0.219 5.6 $332.45PDF
9021Z 500 225 1" 25.4 1.75" 44.5 1.625 41.3 0.219 5.6 $332.45PDF
9022Z 500 225 1" 25.4 1.75" 44.5 1.625 41.3 0.281 7.1 $332.45PDF
9030Z 850 385 1" 25.4 1.968 50 1.75" 44.5 0.25 6.4 $429.97PDF
9031Z 850 385 1" 25.4 2" 50.8 1.75" 44.5 0.25 6.4 $429.97PDF
9040Z 2500 1100 1 1/2" 38.1 2.362 60 2.421 61.5 0.5 12.7 $682.54PDF
9041Z 2500 1100 1 1/2" 38.1 2.375 60.3 2.421 61.5 0.5 12.7 $682.54PDF
9042Z 2500 1100 1 1/2" 38.1 2.375 60.3 2.375 60.3 0.5 12.7 $682.54PDF
9050Z 5000 2200 2" 50.8 3.937 100 3.74" 95 0.562 14.3 $1,469.33PDF
9051Z 5000 2200 2" 50.8 4" 101.6 3.875 98.4 0.562 14.3 $1,469.33PDF
9060Z 10000 4550 3" 76.2 6.297 160 5.703 145 0.825 21 $4,279.19PDF
9070Z 18000 8000 4" 101.6 8.969 228 7.484 190 1.5 38 $13,129.40
8000SS 120 50 1/2" 12.7 0.787 20 0.787 20 0.156 3.8 $172.23PDF Step
8001SS 120 50 1/2" 12.7 0.812 20.6 0.750 19.1 0.156 3.8 $164.70PDF Step
8010SS 120 50 1/2" 12.7 0.875 22.2 0.87" 22.1 0.156 3.8 $178.27PDF Step
8020SS 200 90 5/8" 15.8 0.944 24 1.141 29 0.197 5 $791.04
8030SS 275 110 3/4" 19.1 1.181 30 1.338 34 0.236 6 $1,125.13
8040SS 400 120 1" 25.4 1.496 38 1.771 45 0.314 8 $1,369.60
9020SS 500 225 1" 25.4 1.732 44 1.625 41.3 0.219 5.6 $599.20PDF
9021SS 500 225 1" 25.4 1.75" 44.5 1.625 41.3 0.219 5.6 $599.20PDF
9022SS 500 225 1" 25.4 1.75" 44.5 1.625 41.3 0.281 7.1 $599.20PDF
9030SS 850 385 1" 25.4 1.968 50 1.75" 44.5 0.25 6.4 $801.02PDF
9031SS 850 385 1" 25.4 2" 50.8 1.75" 44.5 0.25 6.4 $801.02PDF
9040SS 2500 1100 1 1/2" 38.1 2.362 60 2.421 61.5 0.5 12.7 $1,006.98PDF
9041SS 2500 1100 1 1/2" 38.1 2.375 60.3 2.421 61.5 0.5 12.7 $1,006.98PDF
9042SS 2500 1100 1 1/2" 38.1 2.375 60.3 2.375 60.3 0.5 12.7 $1,006.98PDF
9050SS 5000 2200 2" 50.8 3.937 100 3.74" 95 0.562 14.3 $1,856.82PDF
9051SS 5000 2200 2" 50.8 4" 101.6 3.875 98.4 0.562 14.3 $1,931.08PDF
9060SS 10000 4550 3" 76.2 6.297 160 5.703 145 0.825 21 $5,043.17PDF
9070SS 18000 8000 4" 101.6 8.969 228 7.484 190 1.5 38 $9,264.55
8000PB 22.05 10 1/2" 12.7 0.787 20 0.787 20 0.156 3.8 $88.17PDF Step
8001PB 22.05 10 1/2" 12.7 0.812 20.6 0.750 19.1 0.156 3.8 $88.17PDF Step
8010PB 22.05 10 1/2" 12.7 0.875 22.2 0.87" 22.1 0.156 3.8 $95.35PDF Step
8020PB 22.05 10 5/8" 15.8 0.944 24 1.141 29 0.197 5 $204.40
8030PB 22.05 10 3/4" 19.1 1.181 30 1.338 34 0.236 6 $204.40
8040PB 65 30 1" 25.4 1.496 38 1.771 45 0.314 8 $365.27
9020PB 65 30 1" 25.4 1.732 44 1.625 41.3 0.219 5.6 $203.92PDF
9021PB 65 30 1" 25.4 1.75" 44.5 1.625 41.3 0.219 5.6 $203.92PDF
9022PB 65 30 1" 25.4 1.75" 44.5 1.625 41.3 0.281 7.1 $203.92PDF
9030PB 65 30 1" 25.4 1.968 50 1.75" 44.5 0.25 6.4 $238.13PDF
9031PB 65 30 1" 25.4 2" 50.8 1.75" 44.5 0.25 6.4 $238.13PDF
9040PB 85 38 1 1/2" 38.1 2.362 60 2.421 61.5 0.5 12.7 $464.80PDF
9041PB 85 38 1 1/2" 38.1 2.375 60.3 2.421 61.5 0.5 12.7 $464.80PDF
9042PB 85 38 1 1/2" 38.1 2.375 60.3 2.375 60.3 0.5 12.7 $464.80PDF
9050PB 85 38 2" 50.8 3.937 100 3.74" 95 0.562 14.3 $898.18PDF
9051PB 85 38 2" 50.8 4" 101.6 3.875 98.4 0.562 14.3 $862.92PDF
9060PB 85 38 3" 76.2 6.297 160 5.703 145 0.825 21 $874.79
9070PB 85 38 4" 101.6 8.969 228 7.484 190 1.5 38 -

Omnitrack 90 series heavy duty ball units from our high-precision series offer lowest coefficient of friction & smoothest performance. Material upgrade options are shown below – order by adding the suffix to the part number required, for example, 9050 ‘SS’ for all stainless steel parts.

  • Load capacity from 46kg to 8000Kg each – Any angle of operation.
  • 20mm – 160mm Ø press or push fit into machine bed.
  • Tolerance rings can be used to compensate for irregularities in bore.
  • Units with ball Ø> 12.7mm incorporate replaceable seals.
  • Service kits available for extended service life.
  • Load ratings remain unchanged with ‘Optional material upgrades’ (Stainless steel, A, Z).

Explore the rest of our ball transfer unit range.

Not found what you need? Call us now.

icon-maximum-loadMaximum load rating unaffected at any orientation
icon-low-frictionLow Friction
1 : 0,005
icon-high-shock-resistenceHigh Shock Resistence
icon-temperatureTemperature
-50/260ºC
icon-speedSpeed
2m/sec
icon-drain-channelsDrain / Debris Channels9000 Series only
icon-user-sevicebleUser Serviceable9000 Series only
icon-precision-machined-constructionPrecise Machined Construction

Service Kits

Omnitrack Heavy Duty 9000 series ball transfers – In continuous production since 1954.

Rapidly restore performance within minutes by using Service Kits S1 & S2 offering 2 levels of components & full overhaul instructions.

Factory reconditioning service for spring loaded & custom units as these may require special tooling for safe disassembly.

To order state original part number, any identification mark & Service Kit required eg S1-9241. If in doubt, contact us & we’ll keep you rolling!

Read More

service kit
Dismantle and assemble diagram Dismantle and assemble diagram

Tolerance Rings

  • Compensate for irregularities in bore & diameter.
  • Ideal where only single-sided access of mounting surface is reachable.
transfer ball unit
tolerance ring
Heavy Duty Part A BORE Ø MIN - MAX B$ fromFile icon FilesAdd to Cart
8000 | 8001 TR20 0.787 20 0.858 - 0.868 21.80 - 22.05 0.472 12 $1.72
8010 TR22 0.866 22 0.937 - 0.947 23.80 - 24.05 0.472 12 $2.96
8020 TR24 0.945 24 1.010 - 1.020 25.65 - 25.90 0.591 15 $1.93
9020 | 9021 | 9022 TR45 1.772 45 1.843 - 1.850 46.80 - 47.00 0.591 15 $3.92
9031 TR50 1.969 50 2.043 - 2.051 51.90 - 52.10 0.591 15 $3.89
9040 | 9041 | 9042 TR60 2.362 60 2.445 - 2.453 62.10 - 62.30 0.787 20 $3.89
9050 | 9051 TR100 3.937 100 4.085 - 4.096 103.75 - 104.05 0.866 20 $5.24

Can’t find what you’re looking for?

Try searching for key-words, part numbers, load, fixing types.

2 year warranty
Subject to usage & conditions.
