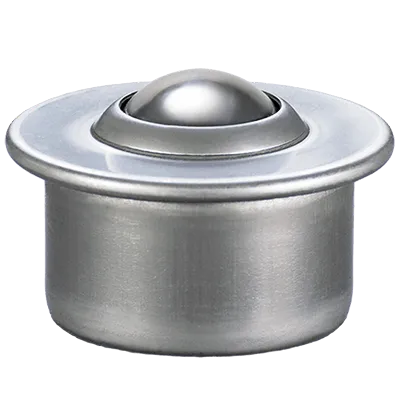

L Series – Push Fit & Clip Fixing Range Ball Transfer Units

L series

Dimensions
Switch measurements:
Part Load (lb)Load (kg) Weight BALL ⌀ ″Ball Ø (mm) A B B* C D E F$ fromFile icon FilesAdd to Cart
L15 132 60 0.090 0.041 5/8" 15 0.945 24 0.374 9.5 - - 0.181 4.6 1.220 31 0.827 21 0.110 2.8 $15.69PDF Step
L15-C 132 60 0.090 0.041 5/8" 15 0.984 - 1.004 - 0.386 9.8 - - 0.181 4.6 1.220 31 0.827 21 0.110 2.8 $19.37PDF Step
L15-K 132 60 0.090 0.041 5/8" 15 0.984 - 1.004 - 0.386 9.8 - - 0.181 4.6 1.220 31 0.827 21 0.110 2.8 $17.01PDF Step
L22 353 160 0.282 0.128 7/8" 22 1.417 36 0.386 9.8 - - 0.154 3.9 1.772 45 1.161 29.5 0.114 2.9 $26.36PDF Step
L22-C 353 160 0.282 0.128 7/8" 22 1.457 - 1.476 - 0.398 10.1 - - 0.154 3.9 1.772 45 1.161 29.5 0.114 2.9 $30.58PDF Step
L22-K 353 160 0.282 0.128 7/8" 22 1.457 - 1.480 - 0.398 10.1 - - 0.154 3.9 1.772 45 1.161 29.5 0.114 2.9 $27.33PDF Step
L30 617 280 0.558 0.253 1 3/16" 30 1.772 45 0.543 13.8 - - 0.268 6.8 2.165 55 1.457 37 0.142 3.6 $36.44PDF Step
L30-C 617 280 0.558 0.253 1 3/16" 30 1.811 - 1.831 - 0.555 14.1 - - 0.268 6.8 2.165 55 1.457 37 0.142 3.6 $42.24PDF Step
L30-K 617 280 0.558 0.253 1 3/16" 30 1.811 - 1.831 - 0.555 14.1 - - 0.268 6.8 2.165 55 1.457 37 0.142 3.6 $38.79PDF Step
L45 1323 600 1.588 0.720 1 3/4" 45 2.441 62 0.748 19 - - 0.354 9 2.953 75 2.106 53.5 0.157 4 $74.31
L45-C 1323 600 - - 1.77 45 - - - - 0.76 19.3 0.35 9 2.95 75 2.11 53.5 0.16 4 $24.26
L45-K 1323 600 1.588 0.720 1 3/4" 45 2.480 - 2.500 - 0.760 19.3 - - 0.354 9 2.953 75 2.106 53.5 0.157 4 $79.62
L15A 132 60 0.086 0.039 5/8" 15 0.945 24 0.374 9.5 - - 0.181 4.6 1.220 31 0.827 21 0.110 2.8 $21.24PDF Step
L15A-C 132 60 0.086 0.039 5/8" 15 0.984 - 1.004 - 0.386 9.8 - - 0.181 4.6 1.220 31 0.827 21 0.110 2.8 $24.46PDF Step
L15A-K 132 60 0.086 0.039 5/8" 15 0.984 - 1.004 - 0.386 9.8 - - 0.181 4.6 1.220 31 0.827 21 0.110 2.8 $23.59PDF Step
L22A 353 160 0.276 0.125 7/8" 22 1.417 36 0.386 9.8 - - 0.154 3.9 1.772 45 1.161 29.5 0.114 2.9 $34.74PDF Step
L22A-C 353 160 0.276 0.125 7/8" 22 1.457 - 1.477 - 0.398 10.1 - - 0.154 3.9 1.772 45 1.161 29.5 0.114 2.9 $39.00PDF Step
L22A-K 353 160 0.276 0.125 7/8" 22 1.457 - 1.481 - 0.398 10.1 - - 0.154 3.9 1.772 45 1.161 29.5 0.114 2.9 $37.50PDF Step
L30A 617 280 0.549 0.249 1 3/16" 30 1.772 45 0.543 13.8 - - 0.268 6.8 2.165 55 1.457 37 0.142 3.6 $54.21PDF Step
L30A-C 617 280 0.549 0.249 1 3/16" 30 1.811 - 1.831 - 0.555 14.1 - - 0.268 6.8 2.165 55 1.457 37 0.142 3.6 $59.99PDF Step
L30A-K 617 280 0.549 0.249 1 3/16" 30 1.811 - 1.831 - 0.555 14.1 - - 0.268 6.8 2.165 55 1.457 37 0.142 3.6 $57.96PDF Step
L45A 1213 550 1.566 0.710 1 3/4" 45 2.441 62 0.748 19 - - 0.354 9 2.953 75 2.106 53.5 0.157 4 $145.01
L45A-C 1213 550 - - 1.77 45 - - - - 0.76 19.3 0.35 9 2.95 75 2.11 53.5 0.16 4 $45.68
L45A-K 1213 550 1.566 0.710 1 3/4" 45 2.480 - 2.500 - 0.760 19.3 - - 0.354 9 2.953 75 2.106 53.5 0.157 4 $150.29
L15D 22 10 0.057 0.026 5/8" 15 0.945 24 0.374 9.5 - - 0.181 4.6 1.220 31 0.827 21 0.110 2.8 $27.50PDF Step
L15D-C 22 10 0.057 0.026 5/8" 15 0.984 - 1.004 - 0.386 9.8 - - 0.181 4.6 1.220 31 0.827 21 0.110 2.8 $31.18PDF Step
L15D-K 22 10 0.057 0.026 5/8" 15 0.984 - 1.004 - 0.386 9.8 - - 0.181 4.6 1.220 31 0.827 21 0.110 2.8 $29.83PDF Step
L22D 44 20 0.194 0.088 7/8" 22 1.417 36 0.386 9.8 - - 0.154 3.9 1.772 45 1.161 29.5 0.114 2.9 $50.25PDF Step
L22D-C 44 20 0.194 0.088 7/8" 22 1.457 - 1.478 - 0.398 10.1 - - 0.154 3.9 1.772 45 1.161 29.5 0.114 2.9 $54.48PDF Step
L22D-K 44 20 0.194 0.088 7/8" 22 1.457 - 1.482 - 0.398 10.1 - - 0.154 3.9 1.772 45 1.161 29.5 0.114 2.9 $53.05PDF Step
L30D 55 25 0.340 0.154 1 3/16" 30 1.772 45 0.543 13.8 - - 0.268 6.8 2.165 55 1.457 37 0.142 3.6 $140.56PDF Step
L30D-C 55 25 0.340 0.154 1 3/16" 30 1.811 - 1.831 - 0.555 14.1 - - 0.268 6.8 2.165 55 1.457 37 0.142 3.6 $94.16PDF Step
L30D-K 55 25 0.340 0.154 1 3/16" 30 1.811 - 1.831 - 0.555 14.1 - - 0.268 6.8 2.165 55 1.457 37 0.142 3.6 $93.58PDF Step
L45D


Available in Standard, A and SS only


Available in Standard, A and SS only

1 3/4" 45 2.441 62 0.748 19 - - 0.354 9 2.953 75 2.106 53.5 0.157 4 -
L45D-K


Available in Standard, A and SS only


Available in Standard, A and SS only

1 3/4" 45 2.480 - 2.500 - 0.760 19.3 - - 0.354 9 2.953 75 2.106 53.5 0.157 4 -
L15SS 88 40 0.086 0.039 5/8" 15 0.945 24 0.374 9.5 - - 0.181 4.6 1.220 31 0.827 21 0.110 2.8 $40.40PDF Step
L15SS-C 88 40 0.086 0.039 5/8" 15 0.984 - 1.004 - 0.386 9.8 - - 0.181 4.6 1.220 31 0.827 21 0.110 2.8 $42.65PDF Step
L15SS-K 88 40 0.086 0.039 5/8" 15 0.984 - 1.004 - 0.386 9.8 - - 0.181 4.6 1.220 31 0.827 21 0.110 2.8 $42.71PDF Step
L22SS 198 90 0.276 0.125 7/8" 22 1.417 36 0.386 9.8 - - 0.154 3.9 1.772 45 1.161 29.5 0.114 2.9 $51.82PDF Step
L22SS-C 198 90 0.276 0.125 7/8" 22 1.457 - 1.479 - 0.398 10.1 - - 0.154 3.9 1.772 45 1.161 29.5 0.114 2.9 $56.01PDF Step
L22SS-K 198 90 0.276 0.125 7/8" 22 1.457 - 1.483 - 0.398 10.1 - - 0.154 3.9 1.772 45 1.161 29.5 0.114 2.9 $54.59PDF Step
L30SS 441 200 0.598 0.271 1 3/16" 30 1.772 45 0.543 13.8 - - 0.268 6.8 2.165 55 1.457 37 0.142 3.6 $82.08PDF Step
L30SS-C 441 200 0.598 0.271 1 3/16" 30 1.811 - 1.831 - 0.555 14.1 - - 0.268 6.8 2.165 55 1.457 37 0.142 3.6 $87.88PDF Step
L30SS-K 441 200 0.598 0.271 1 3/16" 30 1.811 - 1.831 - 0.555 14.1 - - 0.268 6.8 2.165 55 1.457 37 0.142 3.6 $85.85PDF Step
L45SS 573 260 1.566 0.710 1 3/4" 45 2.441 62 0.748 19 - - 0.354 9 2.953 75 2.106 53.5 0.157 4 $217.00
L45SS-C 573 260 - - 1.77 45 - - - - 0.76 19.3 0.35 9 2.95 75 2.11 53.5 0.16 4 $67.48
L45SS-K 573 260 1.566 0.710 1 3/4" 45 2.480 - 2.500 - 0.760 19.3 - - 0.354 9 2.953 75 2.106 53.5 0.157 4 $222.28

The L series ball transfer unit with a push fit retention for rapid installation & replacement where only single-sided access of mounting surface is reachable. Compensate for irregularities in seating bore diameter using optional (spring steel) ‘K-clips’, or (stainless steel) ‘C-clips’.

When using optional clips dimensions ‘A’ & ‘B’ become ‘A*’ & ‘B*’. Drop-in pressed steel units.

Low Friction Low Friction
1 : 0,003
Speed Speed
1m/sec
Temperature Temperature
-20/+80ºC
Orientation Horizontal / Up

Orientation Horizontal / Up

Economy & Value Economy & Value

K & C Type Clips

  • Fixing clips compensate for irregularities in bore and diameter.
  • Ideal where only single-sided access of mounting surface is reachable.
Light Duty Part Bore Ø MIN / MAX A$ fromFile icon FilesAdd to Cart
L15 K15 0.984 - 1.003 25.0 - 25.5 0.945 24 $2.25
L15 C15 0.976 – 0.984 24.8 - 25.0 0.945 24 $3.55
L22 K22 1.456 - 1.476 37 - 37.5 1.417 36 $2.63
L22 C22 1.456 - 1.464 37 - 37.2 1.417 36 $4.07
L30 K30 1.811 - 1.830 46 - 46.5 1.772 45 $3.67
L30 C30 1.822 - 1.838 46.3 - 46.7 1.772 45 $5.57
L45 K45 2.480 - 2.500 63 - 63.5 2.441 62 $5.15
Optimal Retantion ≥ 3mm
optimal retention clips
  1. Fit clip to mounting bore.
  2. Push ball unit though clip.
  3. Peripheral tags expand & grip the ball unit.
clip diagram
K-clip Spring Steel
clip diagram
C-clip Stainless Steel
clip diagram
Other clips available.

Tolerance Rings

  • Compensate for irregularities in bore & diameter.
  • Ideal where only single-sided access of mounting surface is reachable.
Light Duty Part A Bore Ø MIN / MAX B$ fromFile icon FilesAdd to Cart
L15 TR24 0.945 24 1.010 - 1.020 25.65 - 25.9 0.591 15 $1.93
L22 TR36 1.417 36 1.488 - 1.496 37.8 - 38 0.472 12 $3.74
L30 TR45 1.772 45 1.843 - 1.850 46.8 - 47 0.591 15 $3.92
TR60 2.362 60 2.445 - 2.453 62.1 - 62.3 0.787 20 $3.89
transfer ball unit tolerance ring

Similar Heavy Duty models:

  • Maximum capacity at any angles of orientation.
  • Heavy duty precision machined construction.
  • “Endless track” design – smoothest precision.
  • Service kits & factory spares since 1954.
2 year warranty logo
Subject to usage & conditions.
