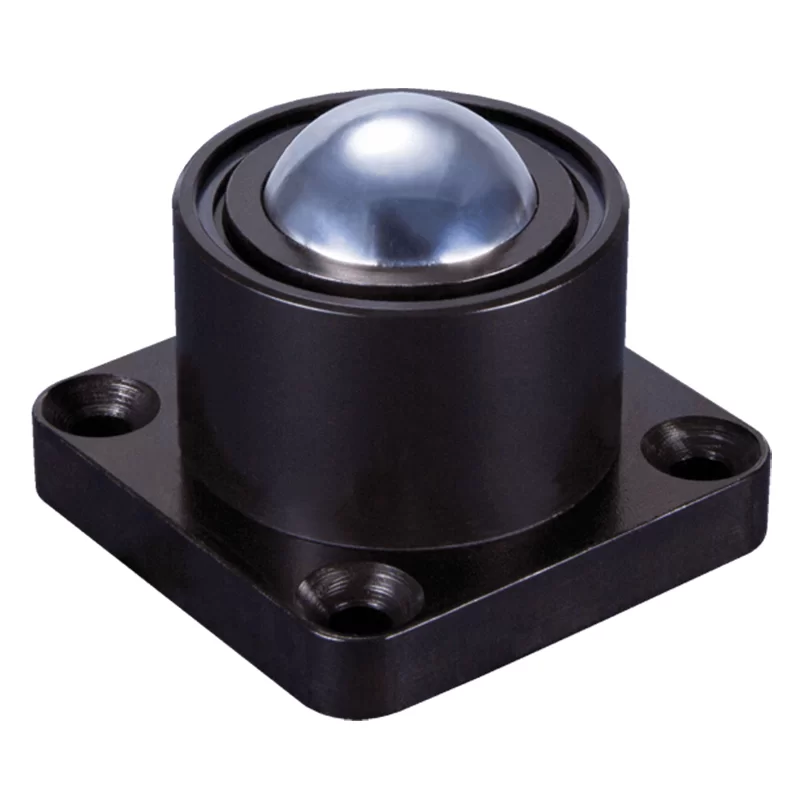

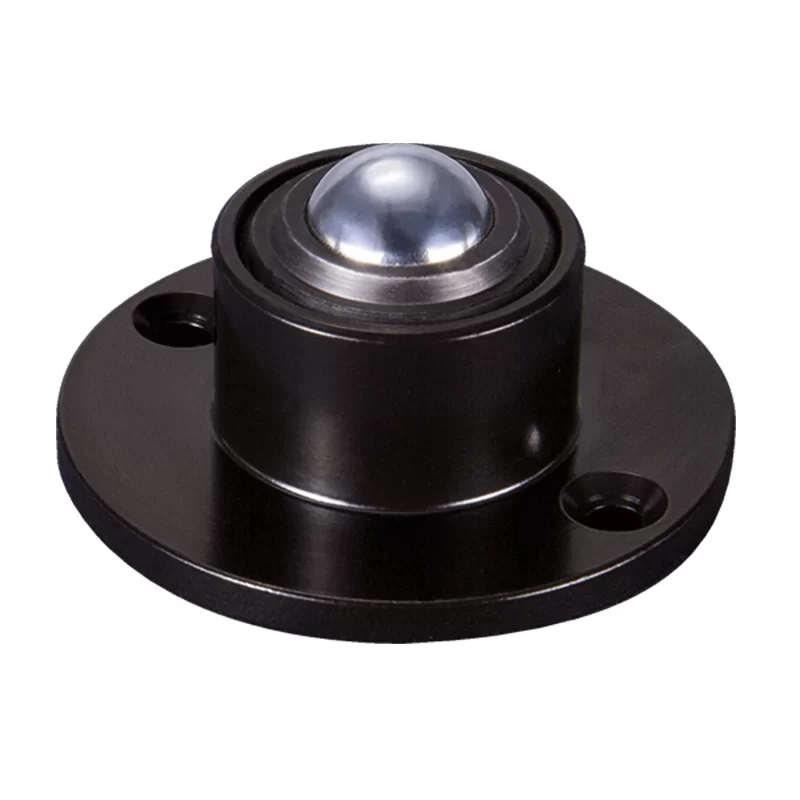

MF Series – Bottom Flange Ball Transfer Units

MF Series
MF Series
Switch measurements:
Part Load (lb)Load (kg) Weight BALL ⌀ ″BALL ⌀ mm A B C D ExE FxF G H$ fromFile icon FilesAdd to Cart
MF12 55 25 0.227 0.103 1/2" 12 0.941 23.9 0.813 20.7 0.677 17.2 0.138 3.5 1.750 44.5 1.375 34.9 0.125 3.2 2 x 0.141 2 x 3.6 $59.97PDF Step
MF15 132 60 0.108 0.049 5/8" 15 0.945 24 0.787 20 0.630 16 0.197 5 1.772 45 1.260 32 0.197 5 4 x 0.181 4 x 4.6 $67.31PDF Step
MF22 397 180 0.390 0.177 7/8" 22 1.417 36 1.201 30.5 1.023 26 0.177 4.5 2.250 57.2 1.750 44.5 0.197 5 4 x 0.219 4 x 5.6 $83.59PDF Step
MF30 772 350 1.105 0.501 1 3/16" 30 1.772 45 1.449 36.8 1.193 30.3 0.256 6.5 3.000 76.2 2.281 57.9 0.250 6.3 4 x 0.281 4 x 7.1 $108.91PDF Step
MF45 1323 600 2.509 1.138 1 3/4" 45 2.441 62 2.106 53.5 1.772 45 0.335 8.5 3.346 85 2.717 69 0.250 6.3 4 x 0.281 4 x 7.1 $316.85PDF Step
MF12A 44 20 0.227 0.103 1/2" 12 0.941 23.9 0.813 20.7 0.677 17.2 0.138 3.5 1.750 44.5 1.375 34.9 0.125 3.2 2 x 0.141 2 x 3.6 $71.82PDF Step
MF15A 110 50 0.106 0.048 5/8" 15 0.945 24 0.787 20 0.630 16 0.197 5 1.772 45 1.260 32 0.197 5 4 x 0.181 4 x 4.6 $81.90PDF Step
MF22A 397 180 0.567 0.257 7/8" 22 1.417 36 1.201 30.5 1.023 26 0.177 4.5 2.250 57.2 1.750 44.5 0.197 5 4 x 0.219 4 x 5.6 $100.56PDF Step
MF30A 772 350 1.111 0.504 1 3/16" 30 1.772 45 1.449 36.8 1.193 30.3 0.256 6.5 3.000 76.2 2.281 57.9 0.250 6.3 4 x 0.281 4 x 7.1 $126.73PDF Step
MF45A 1323 600 2.575 1.168 1 3/4" 45 2.441 62 2.106 53.5 1.772 45 0.335 8.5 3.346 85 2.717 69 0.250 6.3 4 x 0.281 4 x 7.1 $400.60PDF Step
MF12D 11 5 0.220 0.100 1/2" 12 0.941 23.9 0.813 20.7 0.677 17.2 0.138 3.5 1.750 44.5 1.375 34.9 0.125 3.2 2 x 0.141 2 x 3.6 $68.47PDF Step
MF15D 22 10 0.196 0.089 5/8" 15 0.945 24 0.787 20 0.630 16 0.197 5 1.772 45 1.260 32 0.197 5 4 x 0.181 4 x 4.6 $79.22PDF Step
MF22D 44 20 0.483 0.219 7/8" 22 1.417 36 1.201 30.5 1.023 26 0.177 4.5 2.250 57.2 1.750 44.5 0.197 5 4 x 0.219 4 x 5.6 $99.17PDF Step
MF30D 55 25 0.917 0.416 1 3/16" 30 1.772 45 1.449 36.8 1.193 30.3 0.256 6.5 3.000 76.2 2.281 57.9 0.250 6.3 4 x 0.281 4 x 7.1 $132.70PDF Step
MF45D 55 25 2.046 0.928 1 3/4" 45 2.441 62 2.106 53.5 1.772 45 0.335 8.5 3.346 85 2.717 69 0.250 6.3 4 x 0.281 4 x 7.1 $529.57PDF Step
MF12SS Inquire Inquire Inquire Inquire 1/2" 12 0.941 23.9 0.813 20.7 0.677 17.2 0.138 3.5 1.750 44.5 1.375 34.9 0.125 3.2 2 x 0.141 2 x 3.6 -
MF15SS Inquire Inquire Inquire Inquire 5/8" 15 0.945 24 0.787 20 0.630 16 0.197 5 1.772 45 1.260 32 0.197 5 4 x 0.181 4 x 4.6 -
MF22SS Inquire Inquire Inquire Inquire 7/8" 22 1.417 36 1.201 30.5 1.023 26 0.177 4.5 2.250 57.2 1.750 44.5 0.197 5 4 x 0.219 4 x 5.6 -
MF30SS Inquire Inquire Inquire Inquire 1 3/16" 30 1.772 45 1.449 36.8 1.193 30.3 0.256 6.5 3.000 76.2 2.281 57.9 0.250 6.3 4 x 0.281 4 x 7.1 -
MF45SS Inquire Inquire Inquire Inquire 1 3/4" 45 2.441 62 2.106 53.5 1.772 45 0.335 8.5 3.346 85 2.717 69 0.250 6.3 4 x 0.281 4 x 7.1 -

The MF series, bottom flange, medium Duty ball transfer units are machined from solid steel & case hardened for wear resistance. The reinforced machined steel top cap protects against impact from misalignment of the conveyed item. Lubricated for life & zinc plated for resistance to corrosion. Standard materials; Body & cap AISI 1015, Balls AISI 52100. Stainless steel upgrade ‘A’ & ‘SS’ feature AISI420 balls Shock Resistance & body. The main ball sizes ≥19mm incorporates a felt seal to restrict contamination.

This series features a single drain hole. Base plate fixing.

Low Friction Low Friction
1 : 0,02
Speed Speed
1.5m/sec
Temperature Temperature
-30/+100ºC
Shock Resistence Shock Resistence
Orientation Horizontal / Up

Orientation Horizontal / Up

Similar Heavy Duty models:

  • Maximum capacity at any angles of orientation.
  • Heavy duty precision machined construction.
  • “Endless track” design – smoothest precision.
  • Service kits & factory spares since 1954.
2 year warranty logo
Subject to usage & conditions.
